Dell UltraSharp UP2716D Monitor 27 inch QHD Factory Calibrated 100% AdobeRGB IPS with Stand

Dell UltraSharp UP2716D Monitor

Product:

Genuine Original Dell product.

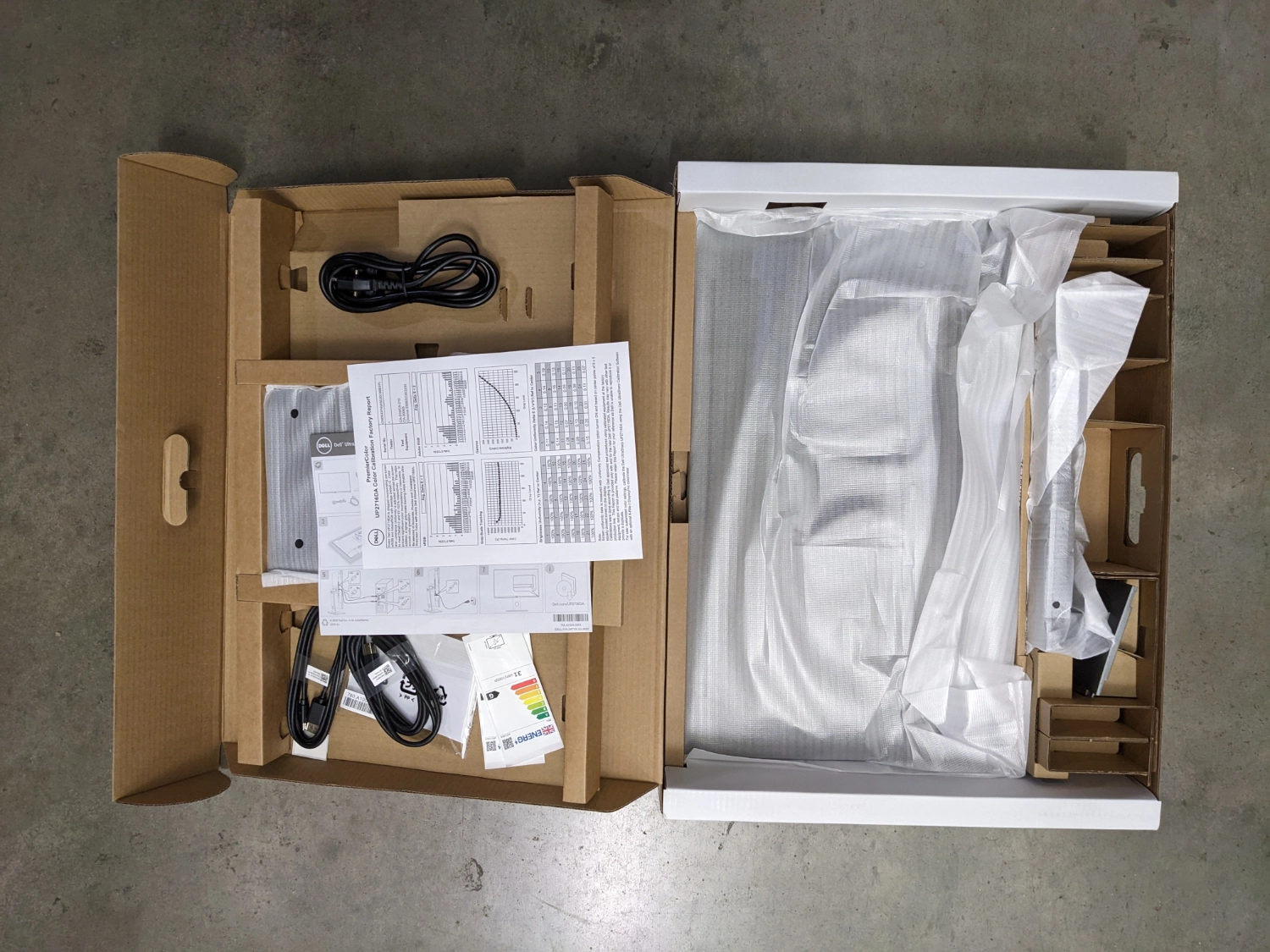

Complete with

• Monitor
• Stand riser
• Stand base
• Power cable
• USB 3.0 upstream cable (enables the USB ports on the monitor)
• DisplayPort cable (Mini DisplayPort to DisplayPort)
• Colour Calibration Factory Report

Model

UP2716D, UP2716DA

Dell P/N

533P4, 0533P4

Specifications

Monitor Specifications

Flat Panel Specifications:
Screen type: Active matrix – TFT LCD
Panel type: In-plane switching (IPS)
Viewable image:
Diagonal: 68.47 cm (27 inches)
Active Area:
Horizontal: 596.74 mm (23.49 inches)
Vertical: 335.66 mm (13.21 inches)
Area: 200301.75 mm² (310.47 inches²)
Pixel pitch: 0.2331 mm x 0.2331 mm
Viewing angle:
Horizontal: 178° (typical)
Vertical: 178° (typical)
Luminance output: 300 cd/m² (typical)
Contrast ratio: 1000 to 1 (typical)
2,000,000 to 1 (dynamic contrast on)
Faceplate coating: Anti-glare treatment of the front polarizer (3H)
Backlight: LED
Response Time: 14 ms (typical), 6 ms (fast mode)
Color depth: 1.07 Billion colors
Color gamut: 100% AdobeRGB, 100% sRGB, 100% REC709, 98% DCI-P
Resolution Specifications
Horizontal scan range: 30 kHz to 88 kHz
Vertical scan range: 50 Hz to 75 Hz
Maximum preset resolution: 2560 x 1440 at 60 Hz
Video display capabilities: (DP & HDMI playback) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, QHD
Physical Characteristics

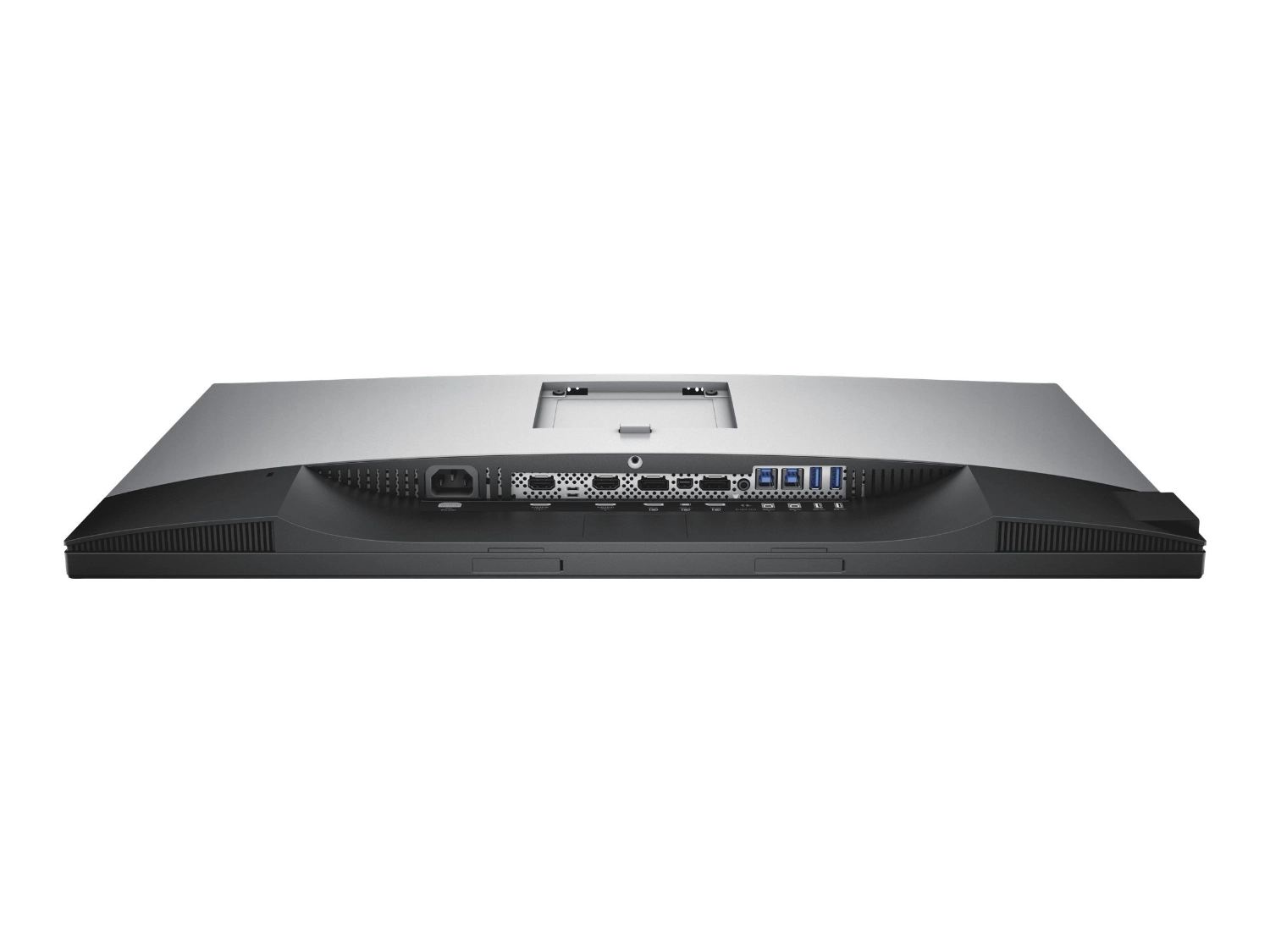

Connector type:
• DP (HDCP 1.4) connector (include DP in and DP out)
• mDP (HDCP 1.4) connector
• HDMI 1/HDMI 2 (HDCP 1.4) connector
• Audio line-out
• USB 3.0 update stream port connector.
• USB 3.0 down stream port connector x 4. (Port with lightning icon is for BC 1.2)
Signal cable type: mDP to DP 1.8 M cable. USB 3.0 1.8 M cable.
Dimensions (with stand):
Height (extended): 540.3 mm (21.27 inches)
Height (compressed): 410.3 mm (16.15 inches)
Width: 611.4 mm (24.07 inches)
Depth: 200.3 mm (7.89 inches)
Dimensions (without stand):
Height: 362.5 mm (14.27 inches)
Width: 611.4 mm (24.07 inches)
Depth: 51.4 mm (2.02 inches)
Stand dimensions:
Height (extended): 433.4 mm (17.06 inches)
Height (compressed): 387.2 mm (15.24 inches)
Width: 292.4 mm (11.51 inches)
Depth: 200.3 mm (7.89 inches)

Key Features

Colour Accuracy
See your work exactly as it was meant to be seen. With 100% AdobeRGB, 100% sRGB, 100% Rec.709 and 98% DCI-P3 coverage, the UP2716DA delivers exceptional colour accuracy straight out of the box. Factory calibration ensures precision you can trust for photography, video editing and design work.

Resolution & Display
Work in stunning QHD (2560 x 1440) resolution on a 27-inch IPS panel that delivers sharp detail and consistent colour across ultra-wide 178° viewing angles. With support for 1.07 billion colours, gradients appear smooth and natural, no banding, no surprises.

Ergonomics & Design
From portrait editing to timeline management, this monitor adapts to your workflow. Height, tilt, swivel and pivot adjustments let you find your ideal position, while the ultra-thin bezel design makes multi-monitor setups seamless and immersive.

Connectivity
Plug into your entire ecosystem with DisplayPort, Mini DisplayPort, dual HDMI and USB 3.0 connectivity. Multi-Stream Transport (MST) support allows daisy-chaining for expanded desktop space without the clutter.

Picture-in-Picture/Picture-by-Picture
Picture-in-Picture (PIP) and Picture-by-Picture (PBP) functionality let you view content from two sources at once. Ideal for comparing colour profiles, monitoring output feeds, or managing multiple systems.

Comfort & Durability
An anti-glare coating reduces reflections, while uniformity compensation technology ensures consistent brightness and colour across the screen. Whether you’re editing for hours or reviewing proofs, the experience stays comfortable and consistent.

Energy Efficiency
Engineered with efficiency in mind, the UP2716DA features low standby power consumption and meets leading environmental standards, so performance doesn’t come at the cost of sustainability.
